Super Mini GPS Vehicle Locator - Small, Power - Saving with Tracking and Alert Functions
Small size for easy installation in various parts of the vehicle.
Power - saving design makes it suitable for long - term vehicle monitoring.

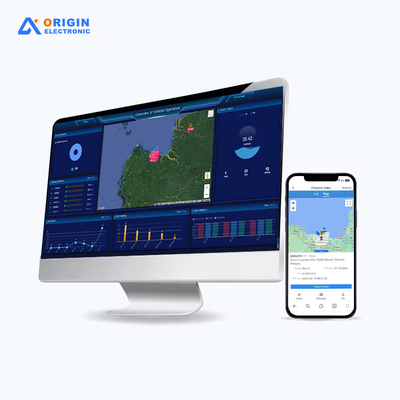

Tracking functions on the platform include accurate history trace and live location tracking.
Alert functions, such as geo - fence alert, keep you updated on your vehicle's status.
| Item | Specification |
|---|---|
| Antenna | Built-in GPS ceramic antenna |
| Built-in LED indicator | Positioning light: Yellow, Communication light: Red |
| Backup battery | 280mAH Soft pack lithium battery |
| Working voltage/current | 30mA@12V (Operating) 4.5mA@12V (Standby) |
| Host color | Black |
| Host size | L81mm*W42mm*H13.5mm |
| Working temperature | -25℃ to +75℃ |
| Storage temperature | -40℃ to +85℃ |
| Location module | B1010-T1(UC6226) |
| Communication module | BC760-W(UIS8910) |
| G-sensor | DA213 |
| Charging IC | LTH7R |
| GPS antenna | 25*25*4MM |
| IC DC/DC | LN3406AFMR |
| IC DC/DC | SP0M18STER |
| IC LDO | GD30LD1000WGTR |
| Item | Specification |
|---|---|
| Communication system | GSM/4G(TDD-LTE/FDD-LTE) |
| Band (Frequency) | Band No. GSM: 850/900/1800/1900Mhz B1/B2/B3/B4/B5/B7/B8/B20/B28/B34/B38/B39/B40/B41 |
| Item | Specification |
|---|---|
| GPS chipset | UC6226 |
| GPS channel | 22 |
| Location accuracy | <10 meters |
| Tracking sensitivity | -163dBm |
| Acquisition sensitivity | -147dBm |
| TTFF | Hot start: 15s (1); Cold start: 60s (28) |
