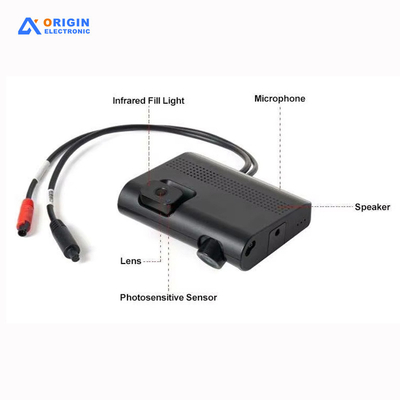

Our Front and Rear Dual Lens Camera Dash Cam features advanced GPS technology for fleet management.
The dual lenses record high - resolution video, and the live GPS tracking offers detailed location and travel information.
| Item | Specifications |
|---|---|
| Resolution | Dual-channel: 1920*1080 (1080P) |
| Pixel | Dual-channel: 2MP |
| Infrared | 940nm wavelength |
| Communication Band | 4G Multi-band (B1/B3/B5/B8/B34/B38/B39/B40/B41) |
| Positioning | GPS + BeiDou (BD) Dual-mode |
| Audio Input | MIC in |
| Video Storage Bitrate | 600kbps~1.5Mbps Adaptive |
| Video Upload Bitrate | 300kbps~512kbps Adaptive |
| Storage Medium | Class 10+ High-speed TF Card *1 |
| Power Cable | Dedicated BMW connector (with emergency button) |
| IO Interface | Custom High1, Custom Low1, RS232 serial port, Speed pulse collection |
| LED Indicators | Red: Flashing - Normal recording Green: Fast flash - Initializing Slow flash - Signal received Steady on - Server connected Off - No signal/SIM missing Blue: Steady - Positioned Flashing - Positioning lost |
| Audio Output | Speaker |
| Storage | TF Card *1 (256GB) |
| Operating Voltage | Vehicle circuit power: 9-36V |
| Operating Current | IR on: 210mA@12V Normal: 150mA@12V Standby: 5mA@12V |
| Operating Temp | -25~70℃ |
| Storage Temp | -40~85℃ |
| Dimensions | 105*86*32 mm |
| Net Weight | 240g |
