| MOQ: | 1 |
| Standard Packaging: | brown box |
| Delivery Period: | 3-5days |
| Payment Method: | T/T |
| Supply Capacity: | 1000000 per week |

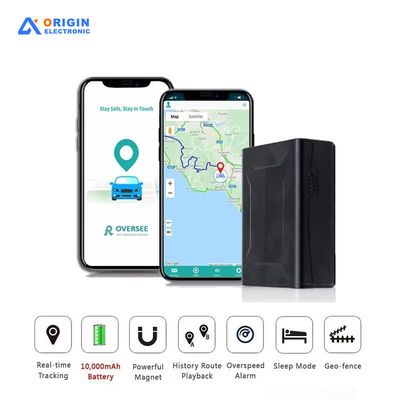

It has a powerful anti - theft function. Once the vehicle moves abnormally,
it will immediately send a notification through the APP, allowing you to be aware of the
vehicle's condition in the first place and ensuring property safety. Specifically designed for fleet management,
it can track multiple vehicles simultaneously. You can view vehicle locations,
driving routes and other information intuitively on the management platform, improving fleet operation efficiency.
Supports domestic 2G/4G networks
Built-in optical protection, remains in standby mode for extended periods, triggers platform alert when tampering detected
Multi-mode positioning: Satellite (GPS+BeiDou) + LBS + WiFi
Automatically identifies fake base stations and maintains normal communication
| Feature | Description |
|---|---|
| Alarm Mode | Maximum 4 daily wake-up times, automatically wakes up and sends location data before hibernation |
| Timed Mode | Regular location data transmission at set intervals |
| Weekly Mode | Schedule specific days/times for data transmission |
| Multi-mode Positioning | Automatic base station positioning when WiFi/GPS unavailable |
| Serial Port Settings | Configurable IP/port, APN, device number, alarm/timed/weekly modes |
| SMS Settings | Configurable via SMS commands |
| SMS Query | Returns current device parameters |
| Tamper Alert | Detects light exposure changes and triggers platform alerts (default enabled) |
| Anti Fake Base Station | Rejects connection to detected fake base stations |
| Item | Details |
|---|---|
| Antenna | Built - in GPS ceramic antenna |
| Built-in LED indicator | Positioning light: Yellow, Communication light: Red, Charging light: Blue |
| Battery | 1500mAh lithium battery 1500mAh nickel battery |
| Working voltage/current | 24mA@3.7V (operating) 800uA@3.7V (standby) |
| Host color | Black |
| Host size | L55.4mm * W36.6mm * H20mm |
| Working temperature | -25℃ to +75℃ |
| Storage temperature | -40℃ to +85℃ |
| Location module | HD8125 |
| Communication module | EC718E |
| G-sensor | DA218B |
| Charging IC | SGM41513YTFQ24G |
| GPS antenna | 18182MM |
| Power IC | LP6301AQVF |
| Power Amplifier IC | ES8311 |
|
|
| MOQ: | 1 |
| Standard Packaging: | brown box |
| Delivery Period: | 3-5days |
| Payment Method: | T/T |
| Supply Capacity: | 1000000 per week |
It has a powerful anti - theft function. Once the vehicle moves abnormally,
it will immediately send a notification through the APP, allowing you to be aware of the
vehicle's condition in the first place and ensuring property safety. Specifically designed for fleet management,
it can track multiple vehicles simultaneously. You can view vehicle locations,
driving routes and other information intuitively on the management platform, improving fleet operation efficiency.
Supports domestic 2G/4G networks
Built-in optical protection, remains in standby mode for extended periods, triggers platform alert when tampering detected
Multi-mode positioning: Satellite (GPS+BeiDou) + LBS + WiFi
Automatically identifies fake base stations and maintains normal communication
| Feature | Description |
|---|---|
| Alarm Mode | Maximum 4 daily wake-up times, automatically wakes up and sends location data before hibernation |
| Timed Mode | Regular location data transmission at set intervals |
| Weekly Mode | Schedule specific days/times for data transmission |
| Multi-mode Positioning | Automatic base station positioning when WiFi/GPS unavailable |
| Serial Port Settings | Configurable IP/port, APN, device number, alarm/timed/weekly modes |
| SMS Settings | Configurable via SMS commands |
| SMS Query | Returns current device parameters |
| Tamper Alert | Detects light exposure changes and triggers platform alerts (default enabled) |
| Anti Fake Base Station | Rejects connection to detected fake base stations |
| Item | Details |
|---|---|
| Antenna | Built - in GPS ceramic antenna |
| Built-in LED indicator | Positioning light: Yellow, Communication light: Red, Charging light: Blue |
| Battery | 1500mAh lithium battery 1500mAh nickel battery |
| Working voltage/current | 24mA@3.7V (operating) 800uA@3.7V (standby) |
| Host color | Black |
| Host size | L55.4mm * W36.6mm * H20mm |
| Working temperature | -25℃ to +75℃ |
| Storage temperature | -40℃ to +85℃ |
| Location module | HD8125 |
| Communication module | EC718E |
| G-sensor | DA218B |
| Charging IC | SGM41513YTFQ24G |
| GPS antenna | 18182MM |
| Power IC | LP6301AQVF |
| Power Amplifier IC | ES8311 |
