| MOQ: | 1 |
| Standard Packaging: | brown box |
| Delivery Period: | 3-5days |
| Payment Method: | T/T |
| Supply Capacity: | 1000000 per week |

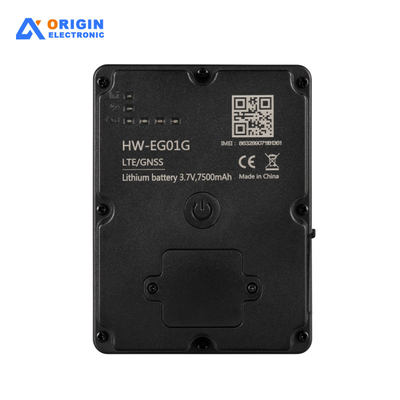

GPS Positioning Management System Real-time Vehicle Tracking
| No. | Item | Specifications | Remarks |
|---|---|---|---|
| 1 | Charging Voltage | DC 5V | |
| 2 | Power Consumption | Operating power: ~30mA (Standby power: ~1.5mA) | |
| 3 | Dimensions | L95*W72*H35MM | |
| 4 | Waterproof Rating | IP67 | |
| 5 | Positioning Method | GPS + BeiDou + Base Station + WiFi | |
| 6 | Positioning Error | <10m (Reference data, positioning error is related to terrain, time, and other factors) | Data from lab tests |
| 7 | Communication Network | 4G | Frequency Bands: B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28/B34/B38/B39/B40/B41/B66 |
| 8 | Communication Method | TCP | |
| 9 | Operating Temperature Range | -25℃ ~ +75℃ | |
| 10 | Storage Temperature Range | -40℃ ~ +85℃ | |
| 11 | Battery Capacity | 7500mAh |
| Feature Block | Feature Details | Feature Description |
|---|---|---|
| Working Modes | Standby Mode | When the upload interval is set to 0 seconds, the terminal enters roll call mode, with a 300S heartbeat interval. The platform can request the latest positioning data. |
| Tracking Mode | When the upload interval is set to 30 seconds, the terminal enters tracking mode, uploading latitude, longitude, and other positioning data at the set interval, with a 300S heartbeat interval. | |
| Normal Mode | When the upload interval is set to 180 seconds, the terminal enters normal mode, uploading latitude, longitude, and other positioning data at the set interval, with a 540S heartbeat interval. | |
| Point Mode | When the upload interval is set to 3600 seconds, the terminal enters point mode, uploading latitude, longitude, and other positioning data at the set interval, with a 300S heartbeat interval. | |
| Vehicle Status Detection | Low Voltage Alert | When the device voltage drops below 3.5V, a low voltage alert is reported. |
| Vibration Alarm | The platform or SMS can set a vibration threshold. When the vibration exceeds the threshold in normal mode, a vibration alarm is triggered. | |
| Overspeed Alarm | The platform sets a maximum speed limit. When the GPS speed exceeds the set value, an overspeed alarm is triggered. | |
| Other Features | Assisted Positioning | The terminal supports assisted positioning to enhance positioning accuracy. |
| Turnpoint Data Upload | When the device's direction angle changes beyond a certain threshold, it immediately uploads a location data point to optimize the trajectory. This feature is disabled by default and can be enabled via custom commands (0: enable, 1: disable). | |
| Remote Upgrade | Supports remote upgrades via the Upgrade Manager. |
Check the device's appearance and ensure all accessories are included.
Open the device and insert the SIM card into the slot. Avoid excessive force to prevent damage. Ensure the SIM card has internet access. The terminal will only function properly when both power and a SIM card are present.
A. Waterproof: Choose a location that is not prone to water ingress to keep the terminal dry. Avoid air conditioning vents to prevent condensation inside the terminal, which can affect its lifespan.
B. Vibration Resistance: Do not install the terminal in areas with prolonged strong vibrations.
C. Interference Prevention: Keep the terminal away from in-car audio and communication devices to avoid conduction and radiation interference.
|
|
