| MOQ: | 1 |
| Standard Packaging: | brown box |
| Delivery Period: | 3-5days |
| Payment Method: | T/T |
| Supply Capacity: | 1000000 per week |

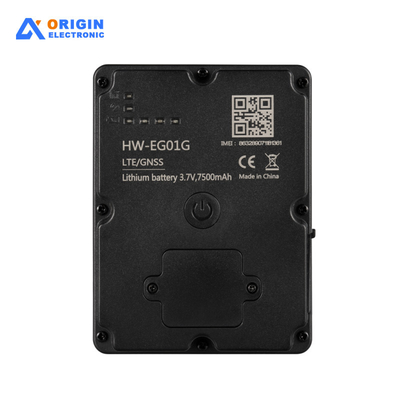

GPS Positioning Management System Real-time Vehicle Tracking
Powerful battery with extended usage time
Supports domestic 2G/4G networks
Optional magnetic or Velcro installation, simple and convenient
Built-in optical protection, remains in standby mode for extended periods, triggers platform alert when tampering detected
Multi-mode positioning: Satellite (GPS+BeiDou) + LBS + WiFi
| Feature | Description |
|---|---|
| Alarm Mode | Maximum 4 daily wake-up times, automatically wakes up and sends location data before hibernation |
| Timed Mode | Regular location data transmission at set intervals |
| Weekly Mode | Schedule specific days/times for data transmission |
| Multi-mode Positioning | Automatic base station positioning when WiFi/GPS unavailable |
| Serial Port Settings | Configurable IP/port, APN, device number, alarm/timed/weekly modes |
| SMS Settings | Configurable via SMS commands |
| SMS Query | Returns current device parameters |
| Tamper Alert | Detects light exposure changes and triggers platform alerts (default enabled) |
| Anti Fake Base Station | Rejects connection to detected fake base stations |
| No. | Item | Specifications |
|---|---|---|
| 1 | Charging Voltage | DC 5V |
| 2 | Power Consumption | Operating power consumption ~30mA (Standby power consumption ~1.5mA) |
| 3 | Dimensions | L95*W72*H35MM |
| 4 | Waterproof | IP67 |
| 5 | Positioning Method | GPS+BeiDou + Base Station + WiFi |
| 6 | Positioning Error | GPS error <10m (varies with terrain/time); Base station error depends on density; WiFi error <30m |
| 7 | Network | 4G (Bands: B1/B3/B5/B8/B34/B38/B39/B40/B41) |
| 8 | Protocol | TCP |
| 9 | Operating Temp | -25℃ ~ +75℃ |
| 10 | Storage Temp | -40℃ ~ +85℃ |
| 11 | Weight | 100g |
| 12 | Battery Capacity | 7500mAh |
|
|
| MOQ: | 1 |
| Standard Packaging: | brown box |
| Delivery Period: | 3-5days |
| Payment Method: | T/T |
| Supply Capacity: | 1000000 per week |
GPS Positioning Management System Real-time Vehicle Tracking
Powerful battery with extended usage time
Supports domestic 2G/4G networks
Optional magnetic or Velcro installation, simple and convenient
Built-in optical protection, remains in standby mode for extended periods, triggers platform alert when tampering detected
Multi-mode positioning: Satellite (GPS+BeiDou) + LBS + WiFi
| Feature | Description |
|---|---|
| Alarm Mode | Maximum 4 daily wake-up times, automatically wakes up and sends location data before hibernation |
| Timed Mode | Regular location data transmission at set intervals |
| Weekly Mode | Schedule specific days/times for data transmission |
| Multi-mode Positioning | Automatic base station positioning when WiFi/GPS unavailable |
| Serial Port Settings | Configurable IP/port, APN, device number, alarm/timed/weekly modes |
| SMS Settings | Configurable via SMS commands |
| SMS Query | Returns current device parameters |
| Tamper Alert | Detects light exposure changes and triggers platform alerts (default enabled) |
| Anti Fake Base Station | Rejects connection to detected fake base stations |
| No. | Item | Specifications |
|---|---|---|
| 1 | Charging Voltage | DC 5V |
| 2 | Power Consumption | Operating power consumption ~30mA (Standby power consumption ~1.5mA) |
| 3 | Dimensions | L95*W72*H35MM |
| 4 | Waterproof | IP67 |
| 5 | Positioning Method | GPS+BeiDou + Base Station + WiFi |
| 6 | Positioning Error | GPS error <10m (varies with terrain/time); Base station error depends on density; WiFi error <30m |
| 7 | Network | 4G (Bands: B1/B3/B5/B8/B34/B38/B39/B40/B41) |
| 8 | Protocol | TCP |
| 9 | Operating Temp | -25℃ ~ +75℃ |
| 10 | Storage Temp | -40℃ ~ +85℃ |
| 11 | Weight | 100g |
| 12 | Battery Capacity | 7500mAh |
