| MOQ: | 1 |
| Standard Packaging: | brown box |
| Delivery Period: | 3-5days |
| Payment Method: | T/T |
| Supply Capacity: | 1000000 per week |

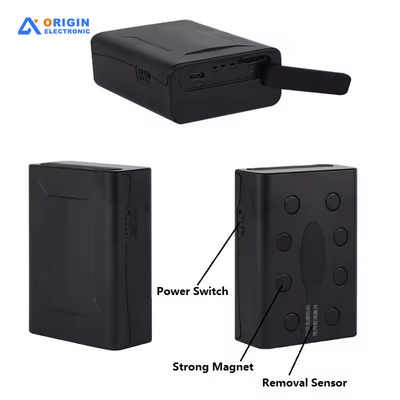

No installation is required. Just magnetically adsorb it on the metal surface of the vehicle,
and you can start using it. It is simple and convenient, and everyone can operate it.
You can view the vehicle's location in real - time through the APP, supporting functions such as
map zooming and track playback, which is convenient for you to comprehensively understand the vehicle's driving conditions
Supports domestic 2G/4G networks
Built-in optical protection, remains in standby mode for extended periods, triggers platform alert when tampering detected
Multi-mode positioning: Satellite (GPS+BeiDou) + LBS + WiFi
Automatically identifies fake base stations and maintains normal communication
| Feature | Description |
|---|---|
| Alarm Mode | Maximum 4 daily wake-up times, automatically wakes up and sends location data before hibernation |
| Timed Mode | Regular location data transmission at set intervals |
| Weekly Mode | Schedule specific days/times for data transmission |
| Multi-mode Positioning | Automatic base station positioning when WiFi/GPS unavailable |
| Serial Port Settings | Configurable IP/port, APN, device number, alarm/timed/weekly modes |
| SMS Settings | Configurable via SMS commands |
| SMS Query | Returns current device parameters |
| Tamper Alert | Detects light exposure changes and triggers platform alerts (default enabled) |
| Anti Fake Base Station | Rejects connection to detected fake base stations |
| Item | Details |
|---|---|
| Antenna | Built - in GPS ceramic antenna |
| Built-in LED indicator | Positioning light: Yellow, Communication light: Red, Charging light: Blue |
| Battery | 1500mAh lithium battery 1500mAh nickel battery |
| Working voltage/current | 24mA@3.7V (operating) 800uA@3.7V (standby) |
| Host color | Black |
| Host size | L55.4mm * W36.6mm * H20mm |
| Working temperature | -25℃ to +75℃ |
| Storage temperature | -40℃ to +85℃ |
| Location module | HD8125 |
| Communication module | EC718E |
| G-sensor | DA218B |
| Charging IC | SGM41513YTFQ24G |
| GPS antenna | 18182MM |
| Power IC | LP6301AQVF |
| Power Amplifier IC | ES8311 |
Video
|
|
| MOQ: | 1 |
| Standard Packaging: | brown box |
| Delivery Period: | 3-5days |
| Payment Method: | T/T |
| Supply Capacity: | 1000000 per week |
No installation is required. Just magnetically adsorb it on the metal surface of the vehicle,
and you can start using it. It is simple and convenient, and everyone can operate it.
You can view the vehicle's location in real - time through the APP, supporting functions such as
map zooming and track playback, which is convenient for you to comprehensively understand the vehicle's driving conditions
Supports domestic 2G/4G networks
Built-in optical protection, remains in standby mode for extended periods, triggers platform alert when tampering detected
Multi-mode positioning: Satellite (GPS+BeiDou) + LBS + WiFi
Automatically identifies fake base stations and maintains normal communication
| Feature | Description |
|---|---|
| Alarm Mode | Maximum 4 daily wake-up times, automatically wakes up and sends location data before hibernation |
| Timed Mode | Regular location data transmission at set intervals |
| Weekly Mode | Schedule specific days/times for data transmission |
| Multi-mode Positioning | Automatic base station positioning when WiFi/GPS unavailable |
| Serial Port Settings | Configurable IP/port, APN, device number, alarm/timed/weekly modes |
| SMS Settings | Configurable via SMS commands |
| SMS Query | Returns current device parameters |
| Tamper Alert | Detects light exposure changes and triggers platform alerts (default enabled) |
| Anti Fake Base Station | Rejects connection to detected fake base stations |
| Item | Details |
|---|---|
| Antenna | Built - in GPS ceramic antenna |
| Built-in LED indicator | Positioning light: Yellow, Communication light: Red, Charging light: Blue |
| Battery | 1500mAh lithium battery 1500mAh nickel battery |
| Working voltage/current | 24mA@3.7V (operating) 800uA@3.7V (standby) |
| Host color | Black |
| Host size | L55.4mm * W36.6mm * H20mm |
| Working temperature | -25℃ to +75℃ |
| Storage temperature | -40℃ to +85℃ |
| Location module | HD8125 |
| Communication module | EC718E |
| G-sensor | DA218B |
| Charging IC | SGM41513YTFQ24G |
| GPS antenna | 18182MM |
| Power IC | LP6301AQVF |
| Power Amplifier IC | ES8311 |
